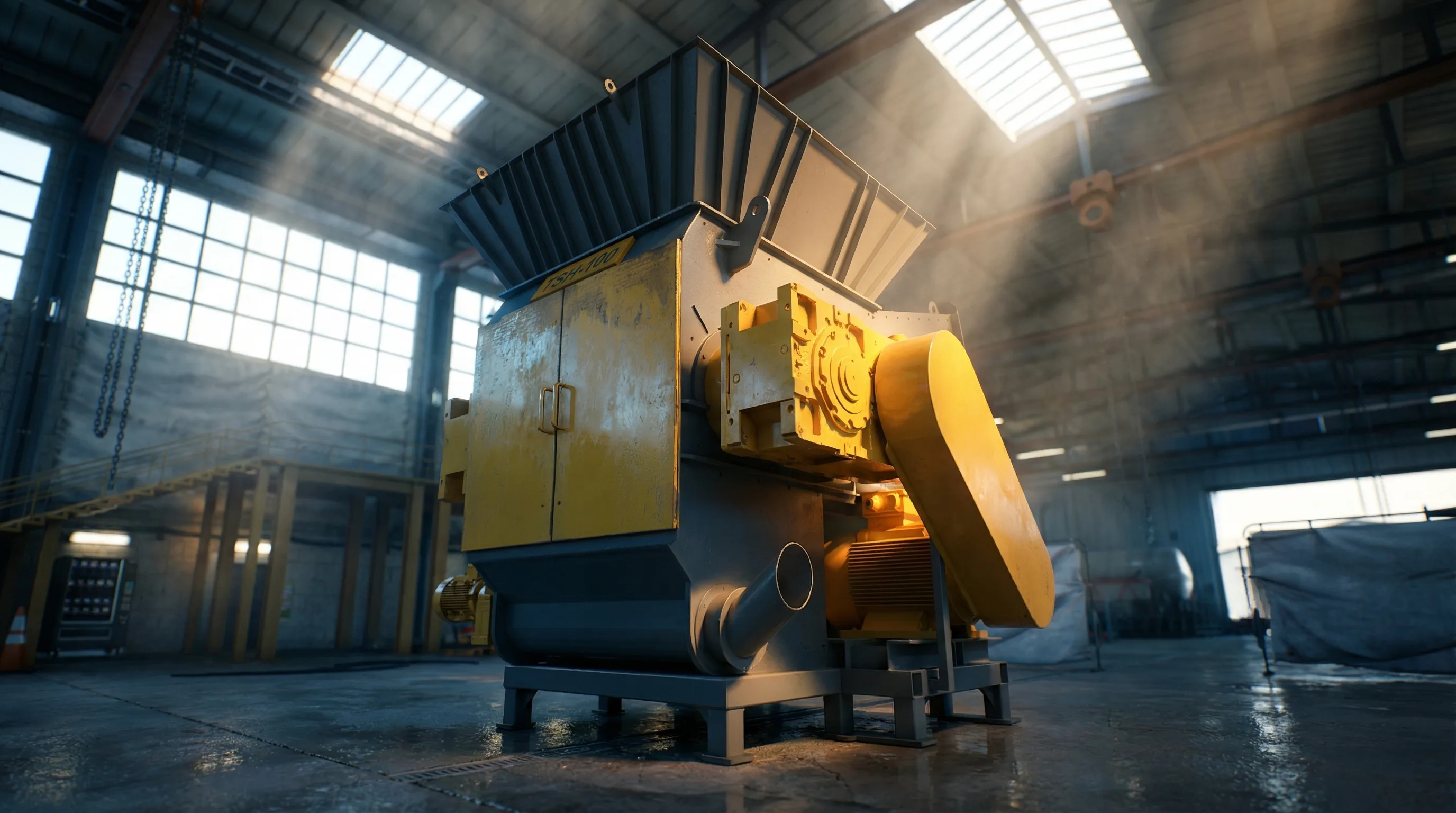

TSH-100 Single Shaft Shredder

TSH-100

PRODUCT CATALOG

Compact Power, High Efficiency

www.mtmakina.com.tr www.parcalamamakinesi.com

Product Introduction

MT Makina
TSH-100

TSH-100 is an essential machine for industrial recycling facilities. With its 1000 mm rotor width and powerful motor options, it shreds large volume plastic crates, pallets, blocks and sheets at high capacity. The energy-saving hydraulic pusher (Hydraulic Ram) system and durable rotor structure provides uninterrupted working performance.

TSH-100 Detail Image

Why TSH-100?

Ideal high-capacity solution for industrial recycling facilities. Easily processes large volume materials with 1000 mm rotor width. Stands out with high efficiency, durability, and easy maintenance features.

Compact Design

Industrial shredding solution in portable dimensions that fits small spaces.

Hydraulic Pusher

Continuous and regular shredding performance with automatic feeding.

Low Energy Consumption

High capacity with 30 - 75 kW motor power, economical operation.

Easy Maintenance

Quick change and minimum downtime with modular blade system.

TSH-100 Shreddable Materials

02
www.mtmakina.com.tr www.parcalamamakinesi.com

Application Areas

MT Makina

TSH-100, is preferred especially in small and medium-sized enterprises due to its compact structure. Below are the main areas of use:

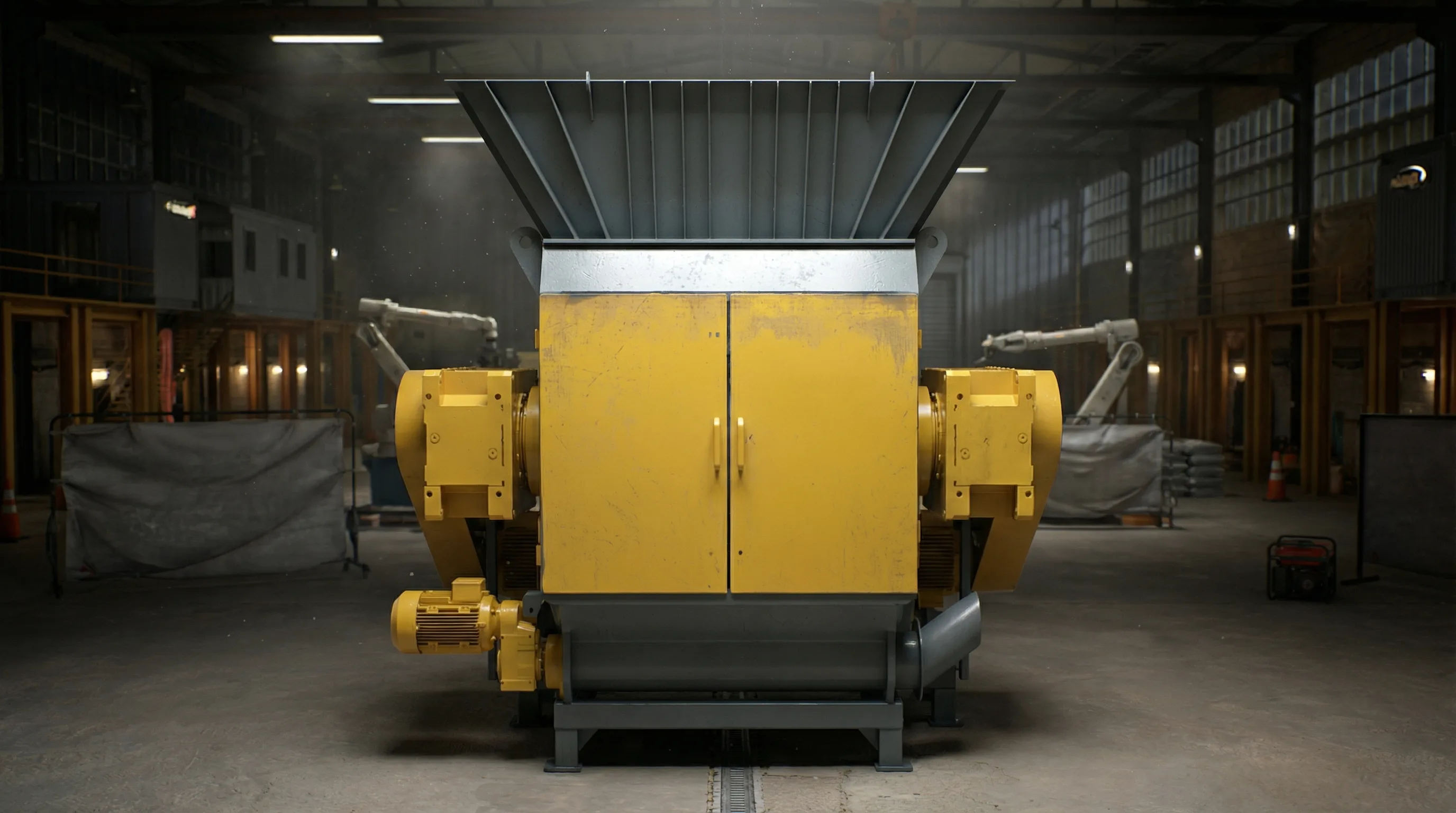

TSH-100 Application

Plastic Production Facilities

On-site destruction of waste from injection and extrusion production lines. Plastic blocks and blocks reduced to granule size.

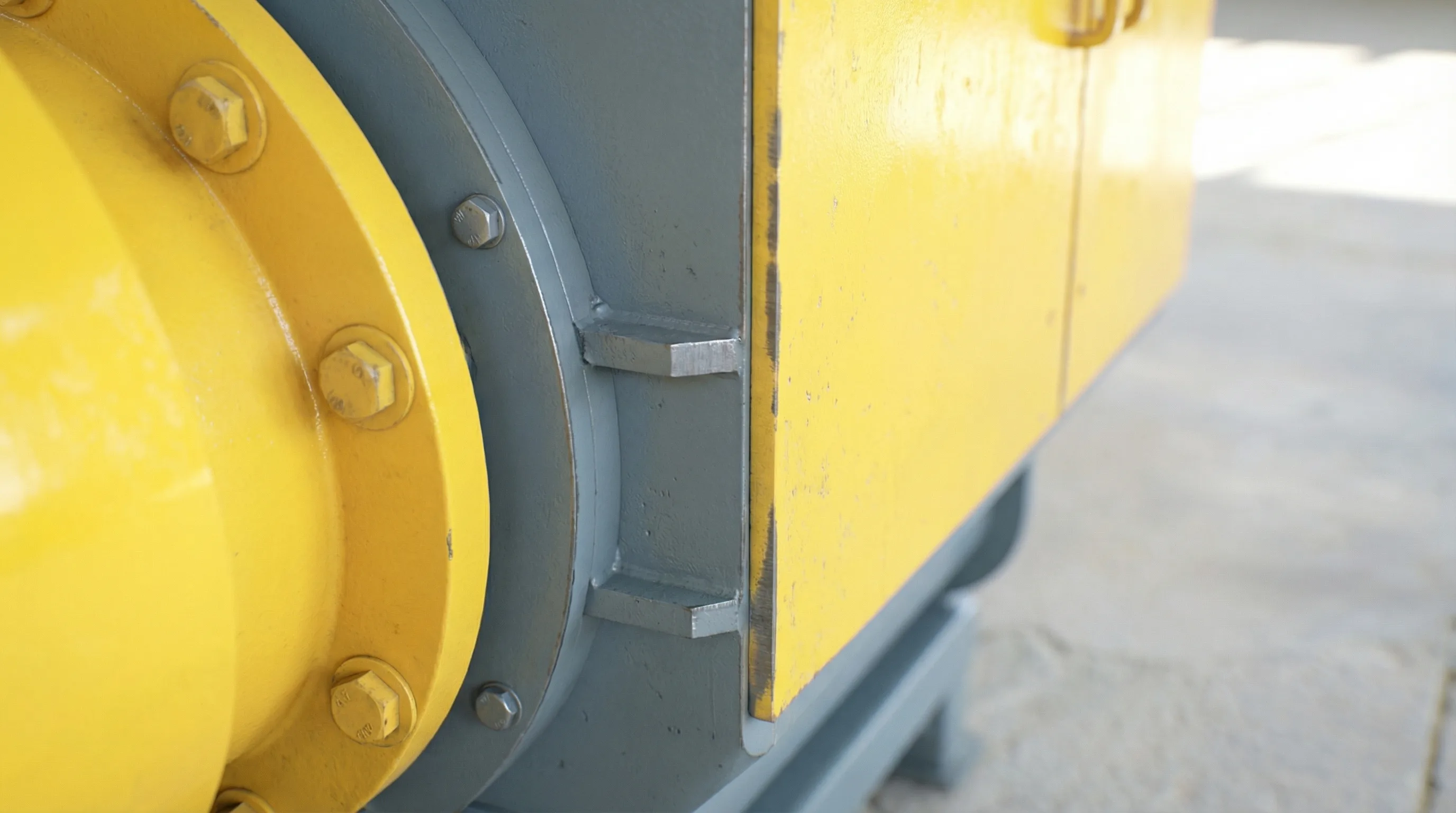

TSH-100 Detay

Printing & Packaging

Paper rolls, cardboard boxes and printing waste shredded and made ready for recycling.

Textile Workshops

Converting fabric pieces, yarn waste and textile scraps into fiber form.

Small Recycling Facilities

Ideal starter machine for recycling facilities operating in limited space.

TSH-100 Advantages

• Easy installation in small spaces   • Single operator operation   • Low operating cost
• Fast installation and commissioning   • Minimum maintenance requirement

TSH-100 General View
03
www.mtmakina.com.tr www.parcalamamakinesi.com

Technical Details

MT Makina
TSH-100 Technical Detail
Hydraulic Ram Provides continuous and regular feeding by pushing material to the rotor. No operator intervention required, works automatically.
Smart PLC & Auto-Reverse The rotor automatically reverses under overload, protects blades and prevents material jamming.
Replaceable Screen Screen system that can be easily changed according to desired granule size. 20mm - 80mm range options.
Hardox Blades 60-80 high wear-resistant Hardox 500 steel cutting tips. Long-lasting and replaceable.

Standard Equipment

  • Body Material St-52 Steel
  • Blade Material Hardox 500
  • Drive System Geared Motor
  • Hydraulic Unit Built-in

Optional Features

  • PLC Control Siemens S7
  • HMI Panel 7" Touchscreen
  • Remote Monitoring IoT Module
  • Output Conveyor Optional
04
www.mtmakina.com.tr www.parcalamamakinesi.com

Technical Specifications

MT Makina
TSH-100

Single Shaft Shredder | Single Shaft Shredder

30-75 kW Motor Power
1200-1800 kg/hour Capacity
~4.500 kg Weight

Detailed Technical Specifications

Model TSH-100
Motor Power 30 – 75 kW
Rotor Diameter 400 mm
Rotor Length 1000 mm
Capacity 1200 – 1800 kg/hour
Number of Blades 60 - 80 Pieces (Optional)
Feeding Opening 1000 x 1000 mm
Machine Weight ~4.500 kg

Note

Capacity values may vary depending on material type, size and density. For your project please contact our sales team for specific technical details.

05
www.mtmakina.com.tr www.parcalamamakinesi.com

Our References

MT Makina

Turkey's and the world's leading institutions choose MT Makina.

40+ References

Your Reliable Solution Partner

With more than 20 years of experience, we provide industrial solutions for public institutions, private sector and international companies shredding solutions.

06
www.mtmakina.com.tr www.parcalamamakinesi.com

Dimensions & Contact

MT Makina
TSH-100 Dimension Image

TSH-100 Dimensions

Total Length (A) 2.200 mm
Total Width (B) 1.500 mm
Total Height (C) 1.750 mm
Feeding Opening 1000 x 1000 mm
